產品名稱：
英管雙六角內螺紋60°直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

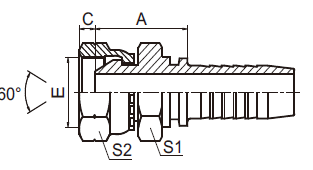

| 訂貨號 | 螺紋E | 膠管 | 尺寸 | |||||||||
| 公稱內徑 | 標號 | C | S1 | S2 | ||||||||
| BFA-04-04/D | G1/4"X19 | 6 | 4 | 23.5 | 5.5 | 19 | 19 | |||||
| BFA-06-06/D | G3/8"X19 | 10 | 6 | 26.5 | 6.3 | 22 | 22 | |||||
| BFA-08-08/D | G1/2"X14 | 12 | 8 | 31 | 7.5 | 27 | 27 | |||||
| BFA-10-08/D | G5/8"X14 | 12 | 8 | 31 | 9.5 | 30 | 30 | |||||
| BFA-12-08/D | G3/4"X14 | 12 | 8 | 31.5 | 10.9 | 32 | 32 | |||||
| BFA-12-12/D | G3/4"X14 | 20 | 12 | 33.5 | 10.9 | 32 | 32 | |||||
| BFA-16-16/D | G1"X11 | 25 | 16 | 35.5 | 11.7 | 41 | 41 | |||||
| BFA-20-20W/D | G1.1/4"X11 | 32 | 20 | 44 | 11 | 50 | 50 | |||||
